SWITCH - Tomada Inteligente
Controle dispositivos elétricos remotamente via WiFi
Controle On/OffAPI RESTAutenticação Segura
Aplicações
- Controle de lâmpadas e luminárias
- Acionamento de ventiladores e ar-condicionado
- Automação de eletrodomésticos
- Controle de aquecedores e cafeteiras
Componentes Necessários
- ESP32-WROOM-32D ou semelhante
- Módulo Relé 5V (1 canal)
- Fonte de alimentação 5V 2A
- Sensor Touch Capacitivo TTP223
- Conector de tomada AC
- Soquete de tomada AC

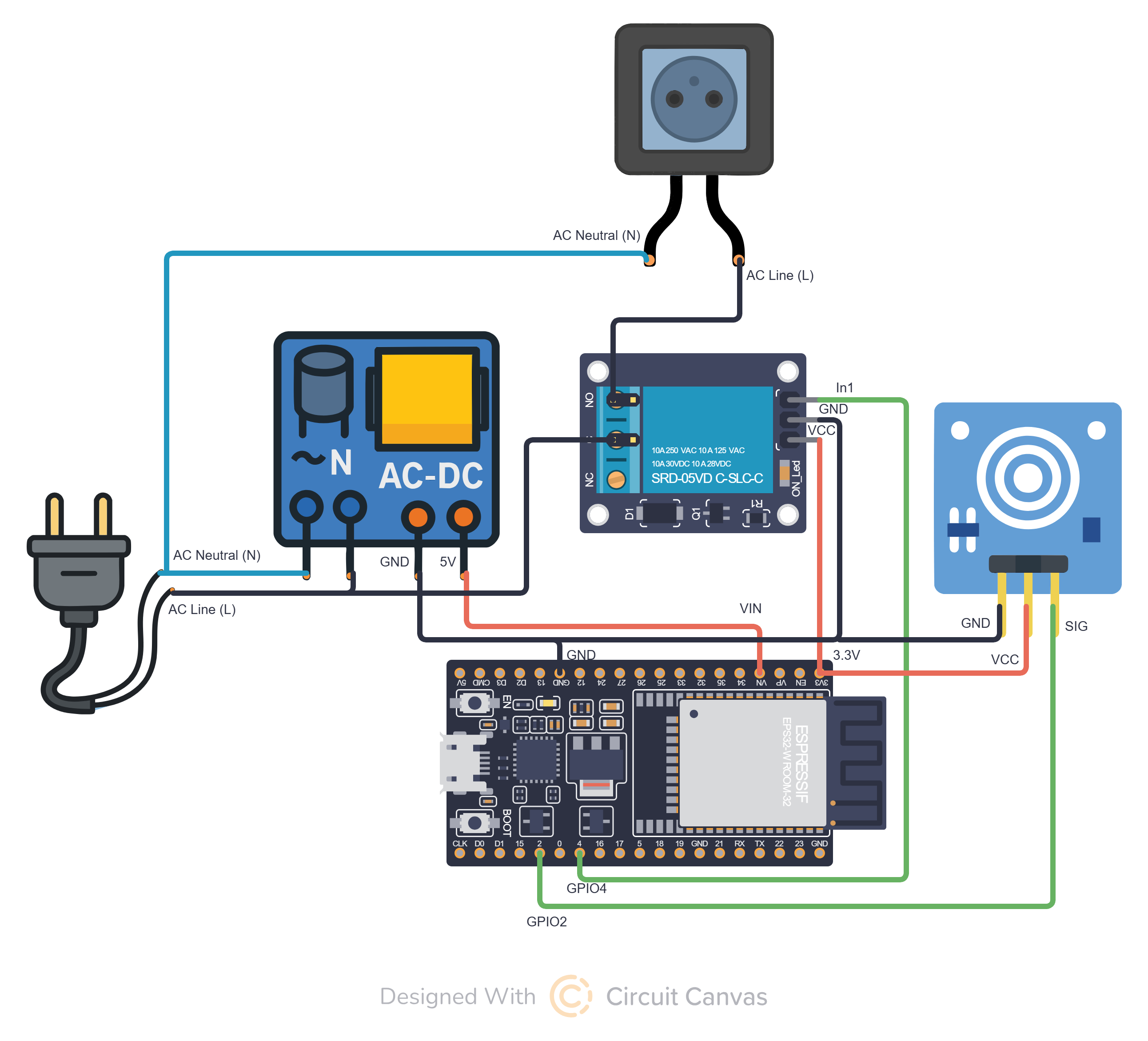

Diagrama de Circuito
- Conecte o pino GPIO4 do ESP32 ao pino IN1 do módulo relé.
- Alimente o módulo relé com 5V (VCC) e GND vindos da fonte AC-DC.
- Conecte a entrada da fonte AC-DC nos fios de corrente alternada: fase (L) e neutro (N).
- Use a saída 5V da fonte AC-DC para alimentar o ESP32 pelo pino VIN e conecte o GND em comum.
- No relé, ligue a fase (L) da rede elétrica na entrada COM e a saída NO na fase da tomada.
- Conecte o neutro (N) da tomada diretamente ao neutro da rede elétrica.
- Conecte o sensor touch aos pinos GND, VCC (3.3V) e SIG do ESP32.
- O pino SIG do sensor touch deve ser ligado ao GPIO2 do ESP32.
- Garanta que todos os módulos compartilhem o mesmo GND.
- Após as conexões, o ESP32 poderá controlar o relé via aplicativo ou pelo toque no sensor.
Código Completo
1#include <WebServer.h>
2#include <WiFi.h>
3#include <WiFiClient.h>
4#include <Preferences.h>
5#include <ESPmDNS.h>
6#include <NimBLEDevice.h>
7#include <ArduinoJson.h>
8#include <AESLib.h>
9#include <base64.h>
10#include <PubSubClient.h>
11#include <esp_system.h>
12
13// ==================== CONFIGURAÇÕES ====================
14
15// UUIDs BLE
16#define SERVICE_UUID "12345678-1234-5678-1234-56789abcdef0"
17#define CHARACTERISTIC_UUID "abcdef01-1234-5678-1234-56789abcdef0"
18#define DEVICE_ID_CHAR_UUID "abcdef02-1234-5678-1234-56789abcdef0"
19
20// Identificação do dispositivo
21#define TYPE "BARREL_SWITCH"
22
23// Pinos
24#define PLUG_PIN 4
25#define TOUCH_PIN 2
26
27// MQTT
28const char* mqtt_server = "barrel.app.br";
29const int mqtt_port = 1883;
30
31// Criptografia AES
32String aesKeyString = "<AES_KEY>";
33String aesIVString = "<AES_IV>";
34
35// ==================== VARIÁVEIS GLOBAIS ====================
36
37WiFiClient espClient;
38PubSubClient mqttClient(espClient);
39Preferences preferences;
40WebServer server(8080);
41
42NimBLECharacteristic *pCharacteristic;
43NimBLECharacteristic *pDeviceIdChar;
44
45String receivedData = "";
46bool bleEnabled = false;
47bool isOn = false;
48
49// Controle do sensor touch
50unsigned long lastTouchTime = 0;
51bool lastTouchState = HIGH;
52
53// ==================== FUNÇÕES DE ID DO DISPOSITIVO ====================
54
55String toHex(uint64_t v, uint8_t bytes) {
56 char buf[17] = {0};
57 for (int i = bytes - 1; i >= 0; --i) {
58 uint8_t b = (v >> (i * 8)) & 0xFF;
59 sprintf(buf + (bytes - 1 - i) * 2, "%02X", b);
60 }
61 return String(buf);
62}
63
64String getDeviceIdFull() {
65 uint64_t mac = ESP.getEfuseMac();
66 return toHex(mac, 6);
67}
68
69String getDeviceIdShort() {
70 uint64_t mac = ESP.getEfuseMac();
71 String prefix = toHex(mac >> 32, 2);
72 String suffix = toHex(mac, 2);
73 return prefix + suffix;
74}
75
76// ==================== FUNÇÕES DE CRIPTOGRAFIA ====================
77
78void stringToBytes(String hexString, byte* byteArray) {
79 for (int i = 0; i < hexString.length(); i += 2) {
80 String byteString = hexString.substring(i, i + 2);
81 byteArray[i / 2] = strtol(byteString.c_str(), NULL, 16);
82 }
83}
84
85String decryptMessage(String encryptedMessage) {
86 byte decrypted[128];
87 byte encrypted[128];
88 byte aesKey[16];
89 byte aesIV[16];
90
91 stringToBytes(aesKeyString, aesKey);
92 stringToBytes(aesIVString, aesIV);
93
94 int encryptedLen = base64_dec_len(encryptedMessage.c_str(), encryptedMessage.length());
95 int actualEncryptedLen = base64_decode((char*)encrypted, encryptedMessage.c_str(), encryptedMessage.length());
96
97 AES aes;
98 int decryptedLen = aes.do_aes_decrypt(encrypted, actualEncryptedLen, decrypted, aesKey, 128, aesIV);
99
100 // Remove padding PKCS7
101 if (decryptedLen > 0) {
102 uint8_t padLength = decrypted[decryptedLen - 1];
103 if (padLength > 0 && padLength <= 16) {
104 decryptedLen -= padLength;
105 }
106 }
107
108 String decryptedMessage = "";
109 for (int i = 0; i < decryptedLen; i++) {
110 decryptedMessage += (char)decrypted[i];
111 }
112
113 return decryptedMessage;
114}
115
116// ==================== CONTROLE DO RELÉ ====================
117
118void setPin(bool state) {
119 digitalWrite(PLUG_PIN, state ? HIGH : LOW);
120 isOn = state;
121 publishDeviceState();
122}
123
124// ==================== FUNÇÕES MQTT ====================
125
126void publishDeviceState() {
127 if (WiFi.status() == WL_CONNECTED && mqttClient.connected()) {
128 String ip = WiFi.localIP().toString();
129 String state = isOn ? "on" : "off";
130
131 preferences.begin("wifi-config", false);
132 String mqtt_user = preferences.getString("mqtt_user", "");
133 preferences.end();
134
135 String shortId = getDeviceIdShort();
136 String topic = "users/" + mqtt_user + "/" + String(TYPE) + "_" + shortId + "/status";
137 String payload = state + "," + ip;
138
139 if (mqttClient.publish(topic.c_str(), payload.c_str())) {
140 Serial.println("Estado publicado no MQTT(" + topic + "): " + payload);
141 } else {
142 Serial.println("Falha ao publicar estado no MQTT.");
143 }
144 }
145}
146
147void mqttCallback(char* topic, byte* payload, unsigned int length) {
148 Serial.print("Mensagem recebida [");
149 Serial.print(topic);
150 Serial.print("]: ");
151
152 String cmd;
153 for (unsigned int i = 0; i < length; i++) {
154 cmd += (char)payload[i];
155 }
156 Serial.println(cmd);
157
158 // Processa comandos MQTT
159 handleCommand(cmd);
160}
161
162void connectToMQTT() {
163 mqttClient.setServer(mqtt_server, mqtt_port);
164 mqttClient.setCallback(mqttCallback);
165
166 String clientId = "ESP32Client-" + String(WiFi.macAddress());
167
168 preferences.begin("wifi-config", false);
169 String mqtt_user = preferences.getString("mqtt_user", "");
170 String mqtt_password = preferences.getString("mqtt_pass", "");
171 String shortId = getDeviceIdShort();
172 String mqtt_topic = "users/" + mqtt_user + "/" + String(TYPE) + "_" + shortId + "/command";
173 preferences.end();
174
175 if (mqttClient.connect(clientId.c_str(), mqtt_user.c_str(), mqtt_password.c_str())) {
176 Serial.println("Conectado ao broker MQTT!");
177 mqttClient.subscribe(mqtt_topic.c_str());
178 } else {
179 Serial.println("Falha na conexão MQTT. Código: " + String(mqttClient.state()));
180 }
181}
182
183void reconnectMQTT() {
184 while (!mqttClient.connected()) {
185 String clientId = "ESP32Client-" + String(WiFi.macAddress());
186 Serial.println("Reconectando ao MQTT...");
187
188 preferences.begin("wifi-config", false);
189 String mqtt_user = preferences.getString("mqtt_user", "");
190 String mqtt_password = preferences.getString("mqtt_pass", "");
191 String shortId = getDeviceIdShort();
192 String mqtt_topic = "users/" + mqtt_user + "/" + String(TYPE) + "_" + shortId + "/command";
193 preferences.end();
194
195 if (mqttClient.connect(clientId.c_str(), mqtt_user.c_str(), mqtt_password.c_str())) {
196 mqttClient.subscribe(mqtt_topic.c_str());
197 } else {
198 delay(5000);
199 }
200 }
201}
202
203// ==================== BLUETOOTH (BLE) ====================
204
205class MyCallbacks : public NimBLECharacteristicCallbacks {
206 void onWrite(NimBLECharacteristic* pCharacteristic) override {
207 std::string value = pCharacteristic->getValue();
208 if (value.length() > 0) {
209 receivedData = String(value.c_str());
210 Serial.println("Received via BLE: " + receivedData);
211
212 // Parse credenciais (formato: SSID,PASSWORD,USERMQTT,PASSMQTT)
213 int firstComma = receivedData.indexOf(",");
214 int secondComma = receivedData.indexOf(",", firstComma + 1);
215 int thirdComma = receivedData.indexOf(",", secondComma + 1);
216
217 if (firstComma > 0) {
218 preferences.begin("wifi-config", false);
219 String ssid = receivedData.substring(0, firstComma);
220 String password = receivedData.substring(firstComma + 1, secondComma);
221 String mqttUser = receivedData.substring(secondComma + 1, thirdComma);
222 String mqttPass = receivedData.substring(thirdComma + 1);
223
224 preferences.putString("mqtt_user", mqttUser);
225 preferences.putString("mqtt_pass", mqttPass);
226
227 Serial.println("Connecting to WiFi...");
228 WiFi.begin(ssid.c_str(), password.c_str());
229
230 int tries = 0;
231 while (WiFi.status() != WL_CONNECTED && tries < 10) {
232 delay(1000);
233 Serial.print(".");
234 tries++;
235 }
236
237 if (WiFi.status() == WL_CONNECTED) {
238 Serial.println("
239Connected to WiFi!");
240 preferences.putString("ssid", ssid);
241 preferences.putString("password", password);
242 pCharacteristic->setValue("Connected");
243 } else {
244 Serial.println("
245Failed to connect.");
246 pCharacteristic->setValue("Failed");
247 preferences.clear();
248 }
249
250 preferences.end();
251 delay(3000);
252 ESP.restart();
253 }
254 }
255 }
256};
257
258void enableBLE() {
259 if (!bleEnabled) {
260 Serial.println("Enabling BLE...");
261
262 String shortId = getDeviceIdShort();
263 String fullId = getDeviceIdFull();
264 String bleName = String(TYPE) + "_" + shortId;
265
266 NimBLEDevice::init(bleName.c_str());
267
268 NimBLEServer* pServer = NimBLEDevice::createServer();
269 NimBLEService* pService = pServer->createService(SERVICE_UUID);
270
271 pCharacteristic = pService->createCharacteristic(
272 CHARACTERISTIC_UUID,
273 NIMBLE_PROPERTY::READ | NIMBLE_PROPERTY::WRITE | NIMBLE_PROPERTY::READ_ENC | NIMBLE_PROPERTY::WRITE_ENC
274 );
275 pCharacteristic->setCallbacks(new MyCallbacks());
276
277 pDeviceIdChar = pService->createCharacteristic(
278 DEVICE_ID_CHAR_UUID,
279 NIMBLE_PROPERTY::READ
280 );
281 pDeviceIdChar->setValue(fullId.c_str());
282
283 pService->start();
284
285 NimBLEAdvertising* pAdvertising = NimBLEDevice::getAdvertising();
286 pAdvertising->addServiceUUID(SERVICE_UUID);
287 pAdvertising->setScanResponse(true);
288
289 std::string mdata = "AID:" + std::string(fullId.c_str());
290 pAdvertising->setManufacturerData(mdata);
291 pAdvertising->start();
292
293 NimBLEDevice::startAdvertising();
294 bleEnabled = true;
295 }
296}
297
298void disableBLE() {
299 if (bleEnabled) {
300 Serial.println("Disabling BLE...");
301 NimBLEDevice::deinit(true);
302 bleEnabled = false;
303 }
304}
305
306// ==================== COMANDOS ========================
307void handleCommand(String cmd) {
308 if (cmd.equalsIgnoreCase("on")) {
309 setPin(true);
310 }
311 else if (cmd.equalsIgnoreCase("off")) {
312 setPin(false);
313 }
314 else if (cmd.equalsIgnoreCase("toggle")) {
315 setPin(!isOn);
316 }
317 else if (cmd.equalsIgnoreCase("status")) {
318 publishDeviceState();
319 }
320 else if (cmd.equalsIgnoreCase("clear")) {
321 preferences.begin("wifi-config", false);
322 preferences.clear();
323 preferences.end();
324 server.send(200, "text/plain", "OK");
325 Serial.println("Reiniciando...");
326 delay(500);
327 ESP.restart();
328 }
329}
330
331// ==================== SERVIDOR WEB ====================
332
333void handleState() {
334 if (server.hasArg("plain")) {
335 String encryptedBody = server.arg("plain");
336 String cmd = decryptMessage(encryptedBody);
337 Serial.println("Corpo descriptografado: " + cmd);
338
339 // Processa comandos HTTP
340 handleCommand(cmd);
341
342 server.send(200, "application/json", "{"message": "Comando recebido com sucesso!"}");
343 } else {
344 server.send(400, "application/json", "{"message": "Erro: Nenhum comando enviado!"}");
345 }
346}
347
348// ==================== SETUP ====================
349
350void setup() {
351 Serial.begin(115200);
352
353 String shortId = getDeviceIdShort();
354 String deviceId = String(TYPE) + "_" + shortId;
355 Serial.print("Iniciando " + deviceId);
356
357 pinMode(PLUG_PIN, OUTPUT);
358 pinMode(TOUCH_PIN, INPUT_PULLUP);
359
360 preferences.begin("wifi-config", false);
361 String ssid = preferences.getString("ssid", "");
362 String password = preferences.getString("password", "");
363 preferences.end();
364
365 // Se tem credenciais salvas, conecta ao WiFi
366 if (ssid.length() > 0) {
367 WiFi.begin(ssid.c_str(), password.c_str());
368
369 Serial.print("Conectando ao Wi-Fi");
370 int attempts = 0;
371 while (WiFi.status() != WL_CONNECTED && attempts < 20) {
372 delay(1000);
373 Serial.print(".");
374 attempts++;
375 }
376
377 if (WiFi.status() == WL_CONNECTED) {
378 Serial.println("
379Wi-Fi Conectado!");
380 Serial.print("IP: ");
381 Serial.println(WiFi.localIP());
382
383 // Iniciar mDNS
384 if (!MDNS.begin(deviceId)) {
385 Serial.println("Erro ao iniciar mDNS");
386 } else {
387 Serial.println("mDNS iniciado: barrel.local");
388 }
389
390 disableBLE();
391
392 // Rotas do servidor web
393 server.on("/get_key_iv", HTTP_GET, []() {
394 String response = aesKeyString + ":" + aesIVString;
395 server.send(200, "text/plain", response);
396 });
397
398 server.on("/clear", HTTP_GET, []() {
399 preferences.begin("wifi-config", false);
400 preferences.clear();
401 preferences.end();
402 server.send(200, "text/plain", "OK");
403 Serial.println("Reiniciando...");
404 delay(500);
405 ESP.restart();
406 });
407
408 server.on("/command", HTTP_POST, handleState);
409
410 server.begin();
411 connectToMQTT();
412 }
413 }
414 else {
415 // Sem credenciais, ativa BLE para configuração
416 enableBLE();
417 }
418}
419
420// ==================== LOOP ====================
421
422void loop() {
423 server.handleClient();
424
425 if (!bleEnabled) {
426 if (!mqttClient.connected()) {
427 reconnectMQTT();
428 }
429 mqttClient.loop();
430 }
431
432 // Monitorar sensor touch com debounce
433 bool touchState = digitalRead(TOUCH_PIN);
434
435 if (lastTouchState == HIGH && touchState == LOW) {
436 unsigned long now = millis();
437 if (now - lastTouchTime > 500) {
438 isOn = !isOn;
439 setPin(isOn);
440 Serial.println("Touch detectado -> novo estado: " + String(isOn ? "ON" : "OFF"));
441 lastTouchTime = now;
442 }
443 }
444
445 lastTouchState = touchState;
446}RF - Controle de Rádio Inteligente
Controle dispositivos via infravermelho (IR) com mudança de cores
Controle IRMudança de CoresAPI REST
Aplicações
- Controle de fitas LED RGB
- Acionamento de TVs e aparelhos de som
- Controle de ar-condicionado via IR
- Automação de ventiladores com controle remoto
Componentes Necessários
- ESP32-C3 Mini ou semelhante
- Controle Remoto RF 433MHz
Diagrama de Circuito
Conecte o LED IR ao coletor do transistor 2N2222. Base no GPIO 13 via resistor 220Ω. Emissor ao GND.
Código Completo
1#include <WebServer.h>
2#include <WiFi.h>
3#include <WiFiClient.h>
4#include <Preferences.h>
5#include <ESPmDNS.h>
6#include <NimBLEDevice.h>
7#include <ArduinoJson.h>
8#include <AESLib.h>
9#include <base64.h>
10#include <PubSubClient.h>
11#include <esp_system.h>
12
13// ==================== CONFIGURAÇÕES ====================
14
15// UUIDs BLE
16#define SERVICE_UUID "12345678-1234-5678-1234-56789abcdef0"
17#define CHARACTERISTIC_UUID "abcdef01-1234-5678-1234-56789abcdef0"
18#define DEVICE_ID_CHAR_UUID "abcdef02-1234-5678-1234-56789abcdef0"
19
20// Identificação do dispositivo
21#define TYPE "BARREL_RF"
22
23// Pinos
24#define PIN_ONE 2
25
26// Variável de estado do relé
27bool stateMemo = false;
28
29// Configurações MQTT
30const char* mqtt_server = "barrel.app.br";
31const int mqtt_port = 1883;
32
33// ==================== VARIÁVEIS GLOBAIS ====================
34
35WiFiClient espClient;
36PubSubClient mqttClient(espClient);
37
38NimBLECharacteristic *pCharacteristic;
39NimBLECharacteristic *pDeviceIdChar;
40
41String receivedData = "";
42bool bleEnabled = false;
43bool mqttEnabled = false;
44
45// Chaves de criptografia AES
46String aesKeyString = "<AES_KEY>";
47String aesIVString = "<AES_IV>";
48
49Preferences preferences;
50WebServer server(8080);
51
52// ==================== FUNÇÕES DE ID DO DISPOSITIVO ====================
53
54// Converte valor para string hexadecimal
55String toHex(uint64_t v, uint8_t bytes) {
56 char buf[17] = {0};
57 for (int i = bytes - 1; i >= 0; --i) {
58 uint8_t b = (v >> (i * 8)) & 0xFF;
59 sprintf(buf + (bytes - 1 - i) * 2, "%02X", b);
60 }
61 return String(buf);
62}
63
64// Obtém o ID completo do dispositivo (MAC address)
65String getDeviceIdFull() {
66 uint64_t mac = ESP.getEfuseMac();
67 return toHex(mac, 6);
68}
69
70// Obtém o ID curto do dispositivo
71String getDeviceIdShort() {
72 uint64_t mac = ESP.getEfuseMac();
73 return toHex(mac, 3);
74}
75
76// ==================== FUNÇÕES MQTT ====================
77
78// Conecta ao broker MQTT
79void connectToMQTT() {
80 preferences.begin("wifi-config", false);
81 String mqtt_user = preferences.getString("mqtt_user", "");
82 String mqtt_password = preferences.getString("mqtt_pass", "");
83 preferences.end();
84
85 // Valida se tem credenciais MQTT
86 if (mqtt_user.length() == 0 || mqtt_password.length() == 0) {
87 Serial.println("Credenciais MQTT não configuradas. MQTT desabilitado.");
88 mqttEnabled = false;
89 return false;
90 }
91
92 mqttClient.setServer(mqtt_server, mqtt_port);
93 mqttClient.setCallback(mqttCallback);
94
95 String clientId = "ESP32Client-" + String(WiFi.macAddress());
96
97 String shortId = getDeviceIdShort();
98 String mqtt_topic = "users/" + mqtt_user + "/" + String(TYPE) + "_" + shortId + "/command";
99
100 // Tenta conexão MQTT
101 if (mqttClient.connect(clientId.c_str(), mqtt_user.c_str(), mqtt_password.c_str())) {
102 Serial.println("Conectado ao broker MQTT!");
103 mqttClient.subscribe(mqtt_topic.c_str());
104 mqttEnabled = true;
105 } else {
106 Serial.println("Falha na conexão MQTT. Código: " + String(mqttClient.state()));
107 mqttEnabled = false;
108 }
109}
110
111// Reconecta ao MQTT em caso de desconexão
112void reconnectMQTT() {
113 if (!mqttEnabled) {
114 return;
115 }
116
117 preferences.begin("wifi-config", false);
118 String mqtt_user = preferences.getString("mqtt_user", "");
119 String mqtt_password = preferences.getString("mqtt_pass", "");
120 preferences.end();
121
122 // Valida credenciais novamente
123 if (mqtt_user.length() == 0 || mqtt_password.length() == 0) {
124 Serial.println("Credenciais MQTT ausentes. Desabilitando MQTT.");
125 mqttEnabled = false;
126 return;
127 }
128
129
130 while (!mqttClient.connected()) {
131 String clientId = "ESP32Client-" + String(WiFi.macAddress());
132 Serial.println("Reconectando ao MQTT...");
133
134 String shortId = getDeviceIdShort();
135 String mqtt_topic = "users/" + mqtt_user + "/" + String(TYPE) + "_" + shortId + "/command";
136
137 if (mqttClient.connect(clientId.c_str(), mqtt_user.c_str(), mqtt_password.c_str())) {
138 mqttClient.subscribe(mqtt_topic.c_str());
139 } else {
140 delay(5000);
141 }
142 }
143}
144
145// Callback para mensagens MQTT recebidas
146void mqttCallback(char* topic, byte* payload, unsigned int length) {
147 Serial.print("Mensagem recebida [");
148 Serial.print(topic);
149 Serial.print("]: ");
150
151 // Converte payload para String
152 String cmd;
153 for (unsigned int i = 0; i < length; i++) {
154 cmd += (char)payload[i];
155 }
156
157 // Processa o comando recebido
158 handleCommand(cmd);
159}
160
161// Publica o estado do dispositivo no MQTT
162void publishDeviceState() {
163 if (!mqttEnabled || !mqttClient.connected()) {
164 return;
165 }
166
167 if (WiFi.status() == WL_CONNECTED && mqttClient.connected()) {
168 String ip = WiFi.localIP().toString();
169 String state = stateMemo ? "on" : "off";
170
171 preferences.begin("wifi-config", false);
172 String mqtt_user = preferences.getString("mqtt_user", "");
173 preferences.end();
174
175 String shortId = getDeviceIdShort();
176 String topic = "users/" + mqtt_user + "/" + String(TYPE) + "_" + shortId + "/status";
177
178 String payload = state + "," + ip;
179
180 if (mqttClient.publish(topic.c_str(), payload.c_str())) {
181 Serial.println("Estado publicado no MQTT("+ topic +"): " + payload);
182 } else {
183 Serial.println("Falha ao publicar estado no MQTT.");
184 }
185 } else {
186 Serial.println("Não conectado ao Wi-Fi ou MQTT. Não foi possível publicar estado.");
187 }
188}
189
190// ==================== BLUETOOTH (BLE) ====================
191
192// Callbacks para características BLE
193class MyCallbacks : public NimBLECharacteristicCallbacks {
194 void onWrite(NimBLECharacteristic* pCharacteristic) override {
195 std::string value = pCharacteristic->getValue();
196 if (value.length() > 0) {
197 receivedData = String(value.c_str());
198 Serial.println("Received via BLE: " + receivedData);
199
200 // Separar credenciais (supondo formato "SSID,PASSWORD,USERMQTT,PASSMQTT")
201 int firstComma = receivedData.indexOf(",");
202 int secondComma = receivedData.indexOf(",", firstComma + 1);
203 int thirdComma = receivedData.indexOf(",", secondComma + 1);
204 if (firstComma > 0) {
205 preferences.begin("wifi-config", false);
206 String ssid = receivedData.substring(0, firstComma);
207 String password = receivedData.substring(firstComma + 1, secondComma);
208
209 // MQTT é opcional
210 String mqttUser = "";
211 String mqttPass = "";
212
213 if (secondComma > 0 && thirdComma > secondComma) {
214 mqttUser = receivedData.substring(secondComma + 1, thirdComma);
215 mqttPass = receivedData.substring(thirdComma + 1);
216
217 if (mqttUser.length() > 0 && mqttPass.length() > 0) {
218 preferences.putString("mqtt_user", mqttUser);
219 preferences.putString("mqtt_pass", mqttPass);
220 Serial.println("Credenciais MQTT salvas.");
221 }
222 }
223
224 preferences.putString("mqtt_user", mqttUser);
225 preferences.putString("mqtt_pass", mqttPass);
226
227 Serial.println("Connecting to WiFi...");
228 WiFi.begin(ssid.c_str(), password.c_str());
229
230 int tries = 0;
231 while (WiFi.status() != WL_CONNECTED && tries < 10) {
232 delay(1000);
233 Serial.print(".");
234 tries++;
235 }
236
237 if (WiFi.status() == WL_CONNECTED) {
238 Serial.println("
239Connected to WiFi!");
240 preferences.putString("ssid", ssid);
241 preferences.putString("password", password);
242 preferences.end();
243 pCharacteristic->setValue("Connected");
244 } else {
245 Serial.println("
246Failed to connect.");
247 pCharacteristic->setValue("Failed");
248 preferences.clear();
249 }
250 delay(3000);
251 ESP.restart();
252 }
253 }
254 }
255};
256
257// ==================== FUNÇÕES DE CRIPTOGRAFIA ====================
258
259// Converte string hexadecimal para array de bytes
260void stringToBytes(String hexString, byte* byteArray) {
261 for (int i = 0; i < hexString.length(); i += 2) {
262 String byteString = hexString.substring(i, i + 2);
263 byteArray[i / 2] = strtol(byteString.c_str(), NULL, 16);
264 }
265}
266
267// Descriptografa mensagem usando AES
268String decryptMessage(String encryptedMessage) {
269 byte decrypted[128];
270 byte encrypted[128];
271 byte aesKey[16];
272 byte aesIV[16];
273
274 stringToBytes(aesKeyString, aesKey);
275 stringToBytes(aesIVString, aesIV);
276
277 int encryptedLen = base64_dec_len(encryptedMessage.c_str(), encryptedMessage.length());
278 int actualEncryptedLen = base64_decode((char*)encrypted, encryptedMessage.c_str(), encryptedMessage.length());
279
280 AES aes;
281 int decryptedLen = aes.do_aes_decrypt(encrypted, actualEncryptedLen, decrypted, aesKey, 128, aesIV);
282
283 // Remove padding PKCS7
284 if (decryptedLen > 0) {
285 uint8_t padLength = decrypted[decryptedLen - 1];
286 if (padLength > 0 && padLength <= 16) {
287 decryptedLen -= padLength;
288 }
289 }
290
291 String decryptedMessage = "";
292 for (int i = 0; i < decryptedLen; i++) {
293 decryptedMessage += (char)decrypted[i];
294 }
295
296 return decryptedMessage;
297}
298
299// ==================== CONTROLE DO RELÉ ====================
300
301// Executa um pulso no relé (liga/desliga)
302void handlePulse() {
303 stateMemo = !stateMemo;
304 digitalWrite(PIN_ONE, stateMemo ? LOW : HIGH);
305 publishDeviceState();
306 delay(1000);
307 stateMemo = !stateMemo;
308 digitalWrite(PIN_ONE, stateMemo ? LOW : HIGH);
309 publishDeviceState();
310}
311
312// ==================== COMANDOS ========================
313
314// Processa comandos recebidos
315void handleCommand(String cmd) {
316 if (cmd.equalsIgnoreCase("pulse")) {
317 handlePulse();
318 } else if (cmd.equalsIgnoreCase("status")) {
319 publishDeviceState();
320 } else if (cmd.equalsIgnoreCase("clear")){
321 preferences.begin("wifi-config", false);
322 preferences.clear();
323 server.send(200, "text/plain", "OK");
324 delay(500);
325 Serial.println("Reiniciando...");
326 ESP.restart();
327 }
328}
329
330// ==================== SERVIDOR WEB ====================
331
332// Manipula requisições de estado via HTTP
333void handleState() {
334 if (server.hasArg("plain")) {
335 String encryptedBody = server.arg("plain");
336 String cmd = decryptMessage(encryptedBody);
337 Serial.println("Corpo descriptografado: " + cmd);
338
339 // Processa comandos HTTP
340 handleCommand(cmd);
341
342 server.send(200, "application/json", "{"message": "Comando recebido com sucesso!"}");
343 } else {
344 server.send(400, "application/json", "{"message": "Erro: Nenhum comando enviado!"}");
345 }
346}
347
348// ==================== CONTROLE BLE ====================
349
350// Habilita o BLE para configuração
351void enableBLE() {
352 if (!bleEnabled) {
353 Serial.println("Enabling BLE...");
354
355 String shortId = getDeviceIdShort();
356 String fullId = getDeviceIdFull();
357 String bleName = String(TYPE) + "_" + shortId;
358 NimBLEDevice::init(bleName.c_str());
359
360 NimBLEServer* pServer = NimBLEDevice::createServer();
361 NimBLEService* pService = pServer->createService(SERVICE_UUID);
362
363 pCharacteristic = pService->createCharacteristic(
364 CHARACTERISTIC_UUID,
365 NIMBLE_PROPERTY::READ | NIMBLE_PROPERTY::WRITE | NIMBLE_PROPERTY::READ_ENC | NIMBLE_PROPERTY::WRITE_ENC
366 );
367
368 pCharacteristic->setCallbacks(new MyCallbacks());
369
370 pDeviceIdChar = pService->createCharacteristic(
371 DEVICE_ID_CHAR_UUID,
372 NIMBLE_PROPERTY::READ
373 );
374 pDeviceIdChar->setValue(fullId.c_str());
375
376 pService->start();
377
378 NimBLEAdvertising* pAdvertising = NimBLEDevice::getAdvertising();
379 pAdvertising->addServiceUUID(SERVICE_UUID);
380 pAdvertising->setScanResponse(true);
381
382 std::string mdata = "AID:" + std::string(fullId.c_str());
383 pAdvertising->setManufacturerData(mdata);
384
385 pAdvertising->start();
386
387 NimBLEDevice::startAdvertising();
388 bleEnabled = true;
389 }
390}
391
392// Desabilita o BLE
393void disableBLE() {
394 if (bleEnabled) {
395 Serial.println("Disabling BLE...");
396 NimBLEDevice::deinit(true);
397 bleEnabled = false;
398 }
399}
400
401// ==================== SETUP ====================
402
403void setup() {
404 Serial.begin(115200);
405
406 String shortId = getDeviceIdShort();
407 String deviceId = String(TYPE) + "_" + shortId;
408 Serial.print("Iniciando " + deviceId);
409
410 preferences.begin("wifi-config", false);
411
412 // Configura pino do relé
413 pinMode(PIN_ONE, OUTPUT);
414 digitalWrite(PIN_ONE, HIGH);
415
416 String ssid = preferences.getString("ssid", "");
417 String password = preferences.getString("password", "");
418
419 Serial.print(ssid.c_str());
420
421 // Se tem credenciais salvas, conecta ao WiFi
422 if (ssid.length() > 0) {
423 WiFi.begin(ssid.c_str(), password.c_str());
424
425 Serial.print("Conectando ao Wi-Fi");
426 int attempts = 0;
427 while (WiFi.status() != WL_CONNECTED && attempts < 20) {
428 delay(1000);
429 Serial.print(".");
430 attempts++;
431 }
432
433 if (WiFi.status() == WL_CONNECTED) {
434 Serial.println("
435Wi-Fi Conectado!");
436 Serial.print("IP: ");
437 Serial.println(WiFi.localIP());
438
439 // Iniciar mDNS para descoberta na rede
440 if (!MDNS.begin(deviceId)) {
441 Serial.println("Erro ao iniciar mDNS");
442 } else {
443 Serial.println("mDNS iniciado: barrel.local");
444 }
445 }
446 disableBLE();
447
448 // Configura rotas do servidor web
449 server.on("/get_key_iv", HTTP_GET, []() {
450 String response = aesKeyString + ":" + aesIVString;
451 server.send(200, "text/plain", response);
452 });
453
454 server.on("/clear", HTTP_GET, []() {
455 preferences.begin("wifi-config", false);
456 preferences.clear();
457 server.send(200, "text/plain", "OK");
458 delay(500);
459 Serial.println("Reiniciando...");
460 ESP.restart();
461 });
462 server.on("/command", HTTP_POST, handleState);
463
464 server.begin();
465
466 connectToMQTT();
467 } else {
468 // Sem credenciais, ativa BLE para configuração
469 enableBLE();
470 }
471 preferences.end();
472}
473
474// ==================== LOOP ====================
475
476void loop() {
477 server.handleClient();
478 if (!bleEnabled && mqttEnabled) {
479
480 if (!mqttClient.connected()) {
481 reconnectMQTT();
482 }
483 mqttClient.loop();
484 }
485}TRIGGER - Interruptor Inteligente
Acione dispositivos com pulso momentâneo para portões e portas
Pulso MomentâneoAPI RESTControle de Portões
Aplicações
- Abertura de portões eletrônicos
- Acionamento de portas automáticas
- Controle de fechaduras elétricas
- Automação de cancelas e barreiras
Componentes Necessários
- ESP32-C3 Mini ou semelhante
- Sensor Touch Capacitivo TTP223
Diagrama de Circuito
GPIO 4 conectado ao IN do relé. Diodo 1N4007 em paralelo com a bobina do relé para proteção.
Código Completo
1#include <Espalexa.h>
2#include <WiFi.h>
3#include <ESPmDNS.h>
4#include <ArduinoJson.h>
5
6#define WIFI_SSID "SUA_REDE_WIFI"
7#define WIFI_PASSWORD "SUA_SENHA"
8#define AUTH_TOKEN "seu-token-unico-aqui"
9#define EXTERNAL_PORT 8081
10
11#define PIN_INTERRUPTOR 4 // Pino do interruptor inteligente
12
13Espalexa espalexa;
14WebServer server(8080);
15
16bool estadoInterruptor = false;
17
18void controleInterruptor(uint8_t state) {
19 estadoInterruptor = state;
20 digitalWrite(PIN_INTERRUPTOR, state ? LOW : HIGH);
21 Serial.print("Interruptor: ");
22 Serial.println(state ? "Ligado" : "Desligado");
23}
24
25void setupWiFi() {
26 Serial.print("Conectando ao WiFi...");
27 WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
28 while (WiFi.status() != WL_CONNECTED) {
29 Serial.print(".");
30 delay(1000);
31 }
32 Serial.println(" Conectado!");
33}
34
35bool isAuthorized() {
36 if (!server.hasHeader("Authorization")) {
37 return false;
38 }
39 String token = server.header("Authorization");
40 return token == "Bearer " AUTH_TOKEN;
41}
42
43void handleDevices() {
44 if (!isAuthorized()) {
45 server.send(401, "application/json", "{"error":"Unauthorized"}");
46 return;
47 }
48
49 StaticJsonDocument<512> json;
50 json["external_port"] = EXTERNAL_PORT;
51 JsonArray devices = json.createNestedArray("devices");
52
53 JsonObject interruptor = devices.createNestedObject();
54 interruptor["name"] = "Interruptor Inteligente";
55 interruptor["type"] = "switch";
56 interruptor["icon"] = "toggle-left";
57
58 JsonObject props = interruptor.createNestedObject("props");
59 props["state"] = estadoInterruptor ? "on" : "off";
60
61 JsonObject routes = interruptor.createNestedObject("routes");
62 routes["state"] = "/state/interruptor";
63
64 JsonArray actions = interruptor.createNestedArray("actions");
65 JsonObject action = actions.createNestedObject();
66 action["key"] = "toggle_state";
67 action["route"] = "/control/interruptor";
68 action["type"] = "switch";
69
70 String response;
71 serializeJson(json, response);
72 server.send(200, "application/json", response);
73}
74
75void handleControlInterruptor() {
76 if (!isAuthorized()) {
77 server.send(401, "application/json", "{"error":"Unauthorized"}");
78 return;
79 }
80
81 // Pulso momentâneo para acionar o interruptor
82 estadoInterruptor = !estadoInterruptor;
83 digitalWrite(PIN_INTERRUPTOR, estadoInterruptor ? LOW : HIGH);
84 delay(500); // Pulso de 500ms
85 digitalWrite(PIN_INTERRUPTOR, estadoInterruptor ? HIGH : LOW);
86
87 server.send(200, "application/json", "{"status":"success"}");
88}
89
90void handleStateInterruptor() {
91 if (!isAuthorized()) {
92 server.send(401, "application/json", "{"error":"Unauthorized"}");
93 return;
94 }
95 server.send(200, "application/json",
96 estadoInterruptor ? "{"state":"on"}" : "{"state":"off"}");
97}
98
99void setup() {
100 Serial.begin(115200);
101 pinMode(PIN_INTERRUPTOR, OUTPUT);
102 digitalWrite(PIN_INTERRUPTOR, HIGH);
103
104 setupWiFi();
105
106 server.on("/devices", handleDevices);
107 server.on("/control/interruptor", handleControlInterruptor);
108 server.on("/state/interruptor", handleStateInterruptor);
109 server.begin();
110
111 espalexa.addDevice("Interruptor Inteligente", controleInterruptor);
112 espalexa.begin();
113
114 MDNS.begin("esp32-interruptor");
115 MDNS.addService("http", "tcp", 80);
116}
117
118void loop() {
119 espalexa.loop();
120 server.handleClient();
121}FEEDER - Alimentador Inteligente
Alimentador automático com controle de quantidade via servo motor
Servo MotorControle de QuantidadeAPI REST
Aplicações
- Alimentador automático para pets
- Dispensador de ração programável
- Controle de porções personalizadas
Componentes Necessários
- ESP32-WROOM-32D ou semelhante
- Motor DC com caixa de redução (5V ou 6V)
- Módulo Relé 5V (1 canal)
- Sensor Touch Capacitivo TTP223
Diagrama de Circuito
GPIO 15 conectado ao sinal do servo. VCC do servo em 5V com capacitor 100µF para estabilização.
Código Completo
1#include <WebServer.h>
2#include <WiFi.h>
3#include <WiFiClient.h>
4#include <Preferences.h>
5#include <ESPmDNS.h>
6#include <NimBLEDevice.h>
7#include <ArduinoJson.h>
8#include <AESLib.h>
9#include <base64.h>
10#include <PubSubClient.h>
11#include <esp_system.h>
12
13// ==================== CONFIGURAÇÕES ====================
14
15// UUIDs BLE
16#define SERVICE_UUID "12345678-1234-5678-1234-56789abcdef0"
17#define CHARACTERISTIC_UUID "abcdef01-1234-5678-1234-56789abcdef0"
18#define DEVICE_ID_CHAR_UUID "abcdef02-1234-5678-1234-56789abcdef0"
19
20// Identificação do dispositivo
21#define TYPE "BARREL_FEEDER"
22
23// Pinos
24#define MAIN_PIN 18
25#define TOUCH_PIN 4
26
27// MQTT
28const char* mqtt_server = "barrel.app.br";
29const int mqtt_port = 1883;
30
31// Criptografia AES
32String aesKeyString = "<AES_KEY>";
33String aesIVString = "<AES_IV>";
34
35// ==================== VARIÁVEIS GLOBAIS ====================
36
37WiFiClient espClient;
38PubSubClient mqttClient(espClient);
39Preferences preferences;
40WebServer server(8080);
41
42NimBLECharacteristic *pCharacteristic;
43NimBLECharacteristic *pDeviceIdChar;
44
45String receivedData = "";
46bool bleEnabled = false;
47bool isOn = false;
48bool mqttEnabled = false;
49
50// Controle do sensor touch
51unsigned long lastTouchTime = 0;
52bool lastTouchState = HIGH;
53
54// ==================== FUNÇÕES DE ID DO DISPOSITIVO ====================
55
56String toHex(uint64_t v, uint8_t bytes) {
57 char buf[17] = {0};
58 for (int i = bytes - 1; i >= 0; --i) {
59 uint8_t b = (v >> (i * 8)) & 0xFF;
60 sprintf(buf + (bytes - 1 - i) * 2, "%02X", b);
61 }
62 return String(buf);
63}
64
65String getDeviceIdFull() {
66 uint64_t mac = ESP.getEfuseMac();
67 return toHex(mac, 6);
68}
69
70String getDeviceIdShort() {
71 uint64_t mac = ESP.getEfuseMac();
72 String prefix = toHex(mac >> 32, 2);
73 String suffix = toHex(mac, 2);
74 return prefix + suffix;
75}
76
77// ==================== FUNÇÕES DE CRIPTOGRAFIA ====================
78
79void stringToBytes(String hexString, byte* byteArray) {
80 for (int i = 0; i < hexString.length(); i += 2) {
81 String byteString = hexString.substring(i, i + 2);
82 byteArray[i / 2] = strtol(byteString.c_str(), NULL, 16);
83 }
84}
85
86String decryptMessage(String encryptedMessage) {
87 byte decrypted[128];
88 byte encrypted[128];
89 byte aesKey[16];
90 byte aesIV[16];
91
92 stringToBytes(aesKeyString, aesKey);
93 stringToBytes(aesIVString, aesIV);
94
95 int encryptedLen = base64_dec_len(encryptedMessage.c_str(), encryptedMessage.length());
96 int actualEncryptedLen = base64_decode((char*)encrypted, encryptedMessage.c_str(), encryptedMessage.length());
97
98 AES aes;
99 int decryptedLen = aes.do_aes_decrypt(encrypted, actualEncryptedLen, decrypted, aesKey, 128, aesIV);
100
101 // Remove padding PKCS7
102 if (decryptedLen > 0) {
103 uint8_t padLength = decrypted[decryptedLen - 1];
104 if (padLength > 0 && padLength <= 16) {
105 decryptedLen -= padLength;
106 }
107 }
108
109 String decryptedMessage = "";
110 for (int i = 0; i < decryptedLen; i++) {
111 decryptedMessage += (char)decrypted[i];
112 }
113
114 return decryptedMessage;
115}
116
117// ==================== CONTROLE DO ALIMENTADOR ====================
118
119// Pulso de 2 segundos para liberar ração
120void setPin() {
121 digitalWrite(MAIN_PIN, HIGH);
122 isOn = true;
123 publishDeviceState();
124 delay(2000);
125
126 digitalWrite(MAIN_PIN, LOW);
127 isOn = false;
128 publishDeviceState();
129}
130
131// ==================== FUNÇÕES MQTT ====================
132
133void publishDeviceState() {
134 if (!mqttEnabled || !mqttClient.connected()) {
135 return;
136 }
137
138 if (WiFi.status() == WL_CONNECTED) {
139 String ip = WiFi.localIP().toString();
140 String state = isOn ? "on" : "off";
141
142 preferences.begin("wifi-config", false);
143 String mqtt_user = preferences.getString("mqtt_user", "");
144 preferences.end();
145
146 String shortId = getDeviceIdShort();
147 String topic = "users/" + mqtt_user + "/" + String(TYPE) + "_" + shortId + "/status";
148 String payload = state + "," + ip;
149
150 if (mqttClient.publish(topic.c_str(), payload.c_str())) {
151 Serial.println("Estado publicado no MQTT(" + topic + "): " + payload);
152 } else {
153 Serial.println("Falha ao publicar estado no MQTT.");
154 }
155 }
156}
157
158void mqttCallback(char* topic, byte* payload, unsigned int length) {
159 Serial.print("Mensagem recebida [");
160 Serial.print(topic);
161 Serial.print("]: ");
162
163 String cmd;
164 for (unsigned int i = 0; i < length; i++) {
165 cmd += (char)payload[i];
166 }
167 handleCommand(cmd);
168}
169
170bool connectToMQTT() {
171 preferences.begin("wifi-config", false);
172 String mqtt_user = preferences.getString("mqtt_user", "");
173 String mqtt_password = preferences.getString("mqtt_pass", "");
174 preferences.end();
175
176 // Valida se tem credenciais MQTT
177 if (mqtt_user.length() == 0 || mqtt_password.length() == 0) {
178 Serial.println("Credenciais MQTT não configuradas. MQTT desabilitado.");
179 mqttEnabled = false;
180 return false;
181 }
182
183 mqttClient.setServer(mqtt_server, mqtt_port);
184 mqttClient.setCallback(mqttCallback);
185
186 String clientId = "ESP32Client-" + String(WiFi.macAddress());
187 String shortId = getDeviceIdShort();
188 String mqtt_topic = "users/" + mqtt_user + "/" + String(TYPE) + "_" + shortId + "/command";
189
190 if (mqttClient.connect(clientId.c_str(), mqtt_user.c_str(), mqtt_password.c_str())) {
191 Serial.println("Conectado ao broker MQTT!");
192 mqttClient.subscribe(mqtt_topic.c_str());
193 mqttEnabled = true;
194 return true;
195 } else {
196 Serial.println("Falha na conexão MQTT. Código: " + String(mqttClient.state()));
197 mqttEnabled = false;
198 return false;
199 }
200}
201
202void reconnectMQTT() {
203 if (!mqttEnabled) {
204 return; // Não tenta reconectar se MQTT está desabilitado
205 }
206
207 preferences.begin("wifi-config", false);
208 String mqtt_user = preferences.getString("mqtt_user", "");
209 String mqtt_password = preferences.getString("mqtt_pass", "");
210 preferences.end();
211
212 // Valida credenciais novamente
213 if (mqtt_user.length() == 0 || mqtt_password.length() == 0) {
214 Serial.println("Credenciais MQTT ausentes. Desabilitando MQTT.");
215 mqttEnabled = false;
216 return;
217 }
218
219 while (!mqttClient.connected() && mqttEnabled) {
220 String clientId = "ESP32Client-" + String(WiFi.macAddress());
221 Serial.println("Reconectando ao MQTT...");
222
223 String shortId = getDeviceIdShort();
224 String mqtt_topic = "users/" + mqtt_user + "/" + String(TYPE) + "_" + shortId + "/command";
225
226 if (mqttClient.connect(clientId.c_str(), mqtt_user.c_str(), mqtt_password.c_str())) {
227 mqttClient.subscribe(mqtt_topic.c_str());
228 Serial.println("Reconectado ao MQTT!");
229 } else {
230 Serial.println("Falha ao reconectar. Tentando novamente em 5s...");
231 delay(5000);
232 }
233 }
234}
235
236// ==================== BLUETOOTH (BLE) ====================
237
238class MyCallbacks : public NimBLECharacteristicCallbacks {
239 void onWrite(NimBLECharacteristic* pCharacteristic) override {
240 std::string value = pCharacteristic->getValue();
241 if (value.length() > 0) {
242 receivedData = String(value.c_str());
243 Serial.println("Received via BLE: " + receivedData);
244
245 // Parse credenciais (formato: SSID,PASSWORD,USERMQTT,PASSMQTT)
246 int firstComma = receivedData.indexOf(",");
247 int secondComma = receivedData.indexOf(",", firstComma + 1);
248 int thirdComma = receivedData.indexOf(",", secondComma + 1);
249
250 if (firstComma > 0) {
251 preferences.begin("wifi-config", false);
252 String ssid = receivedData.substring(0, firstComma);
253 String password = receivedData.substring(firstComma + 1, secondComma);
254
255 // MQTT é opcional
256 String mqttUser = "";
257 String mqttPass = "";
258
259 if (secondComma > 0 && thirdComma > secondComma) {
260 mqttUser = receivedData.substring(secondComma + 1, thirdComma);
261 mqttPass = receivedData.substring(thirdComma + 1);
262
263 if (mqttUser.length() > 0 && mqttPass.length() > 0) {
264 preferences.putString("mqtt_user", mqttUser);
265 preferences.putString("mqtt_pass", mqttPass);
266 Serial.println("Credenciais MQTT salvas.");
267 }
268 }
269
270 Serial.println("Connecting to WiFi...");
271 WiFi.begin(ssid.c_str(), password.c_str());
272
273 int tries = 0;
274 while (WiFi.status() != WL_CONNECTED && tries < 10) {
275 delay(1000);
276 Serial.print(".");
277 tries++;
278 }
279
280 if (WiFi.status() == WL_CONNECTED) {
281 Serial.println("
282Connected to WiFi!");
283 preferences.putString("ssid", ssid);
284 preferences.putString("password", password);
285 pCharacteristic->setValue("Connected");
286 } else {
287 Serial.println("
288Failed to connect.");
289 pCharacteristic->setValue("Failed");
290 preferences.clear();
291 }
292
293 preferences.end();
294 delay(3000);
295 ESP.restart();
296 }
297 }
298 }
299};
300
301void enableBLE() {
302 if (!bleEnabled) {
303 Serial.println("Enabling BLE...");
304
305 String shortId = getDeviceIdShort();
306 String fullId = getDeviceIdFull();
307 String bleName = String(TYPE) + "_" + shortId;
308
309 NimBLEDevice::init(bleName.c_str());
310
311 NimBLEServer* pServer = NimBLEDevice::createServer();
312 NimBLEService* pService = pServer->createService(SERVICE_UUID);
313
314 pCharacteristic = pService->createCharacteristic(
315 CHARACTERISTIC_UUID,
316 NIMBLE_PROPERTY::READ | NIMBLE_PROPERTY::WRITE | NIMBLE_PROPERTY::READ_ENC | NIMBLE_PROPERTY::WRITE_ENC
317 );
318 pCharacteristic->setCallbacks(new MyCallbacks());
319
320 pDeviceIdChar = pService->createCharacteristic(
321 DEVICE_ID_CHAR_UUID,
322 NIMBLE_PROPERTY::READ
323 );
324 pDeviceIdChar->setValue(fullId.c_str());
325
326 pService->start();
327
328 NimBLEAdvertising* pAdvertising = NimBLEDevice::getAdvertising();
329 pAdvertising->addServiceUUID(SERVICE_UUID);
330 pAdvertising->setScanResponse(true);
331
332 std::string mdata = "AID:" + std::string(fullId.c_str());
333 pAdvertising->setManufacturerData(mdata);
334 pAdvertising->start();
335
336 NimBLEDevice::startAdvertising();
337 bleEnabled = true;
338 }
339}
340
341void disableBLE() {
342 if (bleEnabled) {
343 Serial.println("Disabling BLE...");
344 NimBLEDevice::deinit(true);
345 bleEnabled = false;
346 }
347}
348
349// ==================== COMANDOS ========================
350void handleCommand(String cmd) {
351 if (cmd.equalsIgnoreCase("release")) {
352 setPin();
353 }
354 else if (cmd.equalsIgnoreCase("status")) {
355 publishDeviceState();
356 }
357 else if (cmd.equalsIgnoreCase("clear")) {
358 preferences.begin("wifi-config", false);
359 preferences.clear();
360 preferences.end();
361 server.send(200, "text/plain", "OK");
362 Serial.println("Reiniciando...");
363 delay(500);
364 ESP.restart();
365 }
366}
367
368// ==================== SERVIDOR WEB ====================
369
370void handleState() {
371 if (server.hasArg("plain")) {
372 String encryptedBody = server.arg("plain");
373 String cmd = decryptMessage(encryptedBody);
374 Serial.println("Corpo descriptografado: " + cmd);
375
376 // Processa comandos HTTP
377 handleCommand(cmd);
378
379 server.send(200, "application/json", "{"message": "Comando recebido com sucesso!"}");
380 } else {
381 server.send(400, "application/json", "{"message": "Erro: Nenhum comando enviado!"}");
382 }
383}
384
385// ==================== SETUP ====================
386
387void setup() {
388 Serial.begin(115200);
389
390 String shortId = getDeviceIdShort();
391 String deviceId = String(TYPE) + "_" + shortId;
392 Serial.print("Iniciando " + deviceId);
393
394 pinMode(MAIN_PIN, OUTPUT);
395 pinMode(TOUCH_PIN, INPUT_PULLUP);
396
397 preferences.begin("wifi-config", false);
398 String ssid = preferences.getString("ssid", "");
399 String password = preferences.getString("password", "");
400 Serial.print(ssid.c_str());
401 preferences.end();
402
403 // Se tem credenciais salvas, conecta ao WiFi
404 if (ssid.length() > 0) {
405 WiFi.begin(ssid.c_str(), password.c_str());
406
407 Serial.print("Conectando ao Wi-Fi");
408 int attempts = 0;
409 while (WiFi.status() != WL_CONNECTED && attempts < 20) {
410 delay(1000);
411 Serial.print(".");
412 attempts++;
413 }
414
415 if (WiFi.status() == WL_CONNECTED) {
416 Serial.println("
417Wi-Fi Conectado!");
418 Serial.print("IP: ");
419 Serial.println(WiFi.localIP());
420
421 // Iniciar mDNS
422 if (!MDNS.begin(deviceId)) {
423 Serial.println("Erro ao iniciar mDNS");
424 } else {
425 Serial.println("mDNS iniciado: barrel.local");
426 }
427
428 disableBLE();
429
430 // Rotas do servidor web
431 server.on("/get_key_iv", HTTP_GET, []() {
432 preferences.begin("wifi-config", false);
433 bool keyIvAccessed = preferences.getBool("key_accessed", false);
434
435 if (!keyIvAccessed) {
436 String response = aesKeyString + ":" + aesIVString;
437 server.send(200, "text/plain", response);
438 preferences.putBool("key_accessed", true);
439 Serial.println("Chave/IV enviados. Rota bloqueada permanentemente.");
440 } else {
441 server.send(403, "text/plain", "Acesso negado. Rota já foi acessada.");
442 Serial.println("Tentativa de acesso à rota get_key_iv bloqueada.");
443 }
444
445 preferences.end();
446 });
447
448 server.on("/clear", HTTP_GET, []() {
449 preferences.begin("wifi-config", false);
450 preferences.clear();
451 preferences.end();
452 server.send(200, "text/plain", "OK");
453 Serial.println("Reiniciando...");
454 delay(500);
455 ESP.restart();
456 });
457
458 server.on("/command", HTTP_POST, handleState);
459
460 server.begin();
461
462 // Tenta conectar ao MQTT apenas se tiver credenciais
463 connectToMQTT();
464 }
465 }
466 else {
467 // Sem credenciais, ativa BLE para configuração
468 enableBLE();
469 }
470}
471
472// ==================== LOOP ====================
473
474void loop() {
475 server.handleClient();
476
477 if (!bleEnabled && mqttEnabled) {
478 if (!mqttClient.connected()) {
479 reconnectMQTT();
480 }
481 mqttClient.loop();
482 }
483
484 // Monitorar sensor touch com debounce
485 bool touchState = digitalRead(TOUCH_PIN);
486
487 if (lastTouchState == HIGH && touchState == LOW) {
488 unsigned long now = millis();
489 if (now - lastTouchTime > 500) {
490 setPin();
491 Serial.println("Touch detectado");
492 lastTouchTime = now;
493 }
494 }
495
496 lastTouchState = touchState;
497}Pronto para Começar?
Baixe o Arduino IDE, instale as bibliotecas necessárias e comece a criar seus próprios dispositivos inteligentes integrados ao Barrel Smart Home.
